Condition : New
Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Weight (KG) : 0.54
Showroom Location : None
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Marketing Type : New Product 2020
Warranty of core components : 3 month
Core Components : Glass fiber
Place of Origin : Hebei, China
Brand Name : BAMA
Warranty : 1 Year
Weight [kg] : 0.54
Filter medium : Glass fibre
i.a. suitable for series : Hydraulics
Filter fineness [μm] : B5=200 / B7=1000
Flow direction : Outside to Inside
max. will. Differential pressure [bar] : 20
Bypass valve Opening pressure [bar] : 3
Seals-material : NBR
Zul. Continuous operating temperature : -30°C to 100°C
Packaging Details : we pack our goods in PP bags and brown cartons. If you have a legally registered patent, we can pack the goods into your brand box after receiving your authorization.
Port : Tianjin Qingdao Shanghai ect
Supply Ability : 10000 Piece/Pieces per Month
Price : $50.00/pieces 1-9 pieces
MOQ : 20 pieces
Performance Data | Dimensional Specifications | Physical Specifications | |
MICRON RATING:5.00 ABSOLUTE | (A) OUTER DIAMETER, TOP:2.80 IN (71.12 MM) | Handle: YES | |
BETA RATING:B5 = 200 | (B) OUTER DIAMETER, BOTTOM:2.80 IN (71.12 MM) | Seal Material:BUNA-N | |
COLLAPSE PRESSURE RATING: | (C) INNER DIAMETER, TOP:1.31 IN (33.27 MM) | Type of Adhesive:EPOXY | |
MAXIMUM TEMPERATURE:225 F | (D) INNER DIAMETER,BOTTOM: | TYPE OF ENDCAP:PLATED STEEL | |
Direction of Flow: OUTSIDE->IN RECOMMENDED CHANGEOUT DIFFERENTIAL PRESSURE:50 PSID | (E) LENGTH:8.00 IN (0.00 MM) (F) THREAD:NONE | CENTER TUBE:PLATED STEEL | |
Get the quote by contacting us | TYPE OF MEDIA:MICROGLASS | ||
FILTER AREA:1507 SQ.IN. | |||
PLATING:ZINC PLATED | |||
OUTER JACKET:NONE - NONE | |||
CONFIGURATION:SINGLE OPEN END |
![]() |

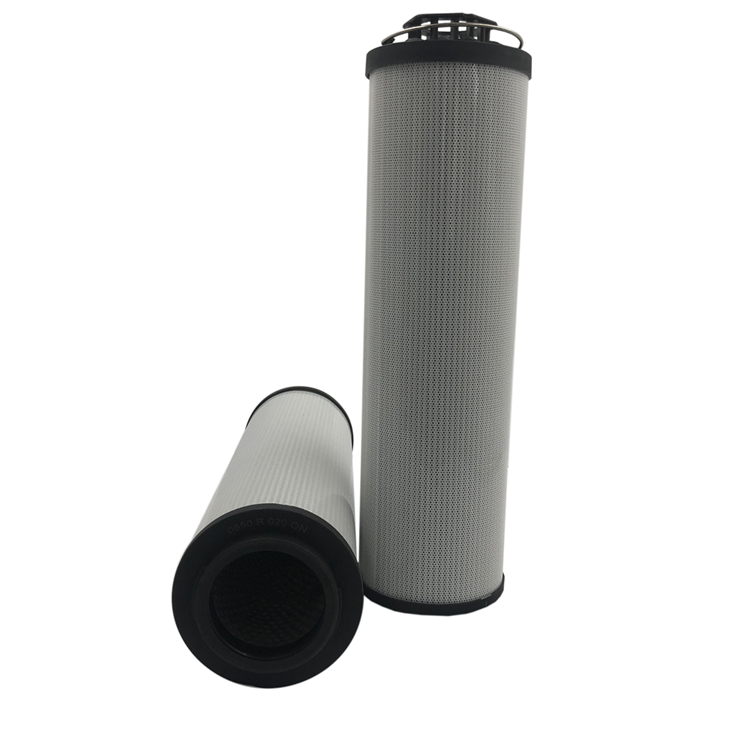

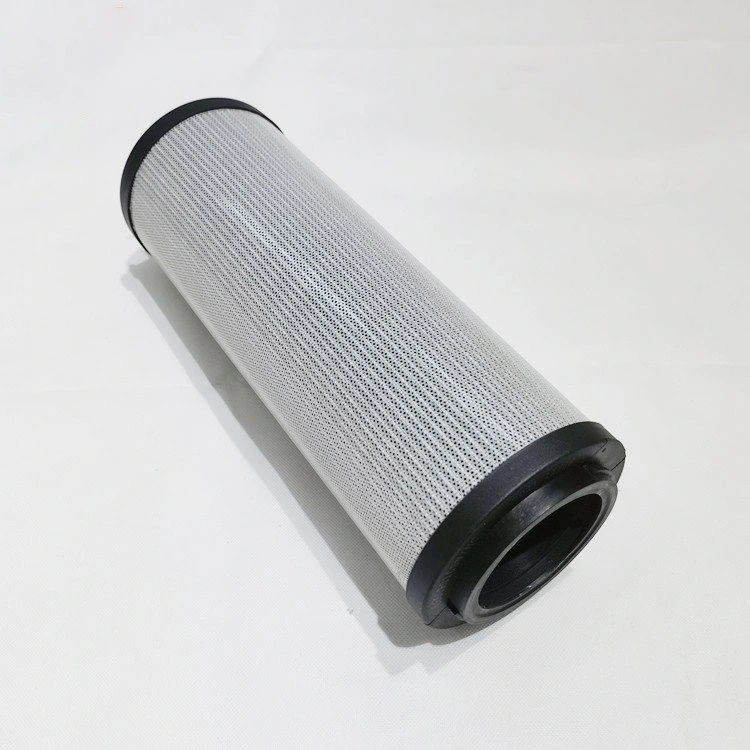

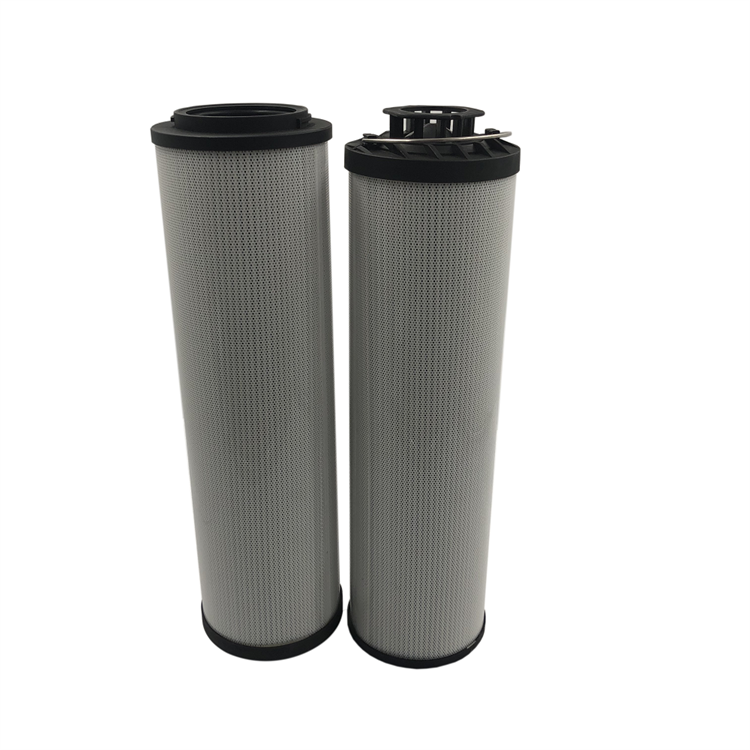

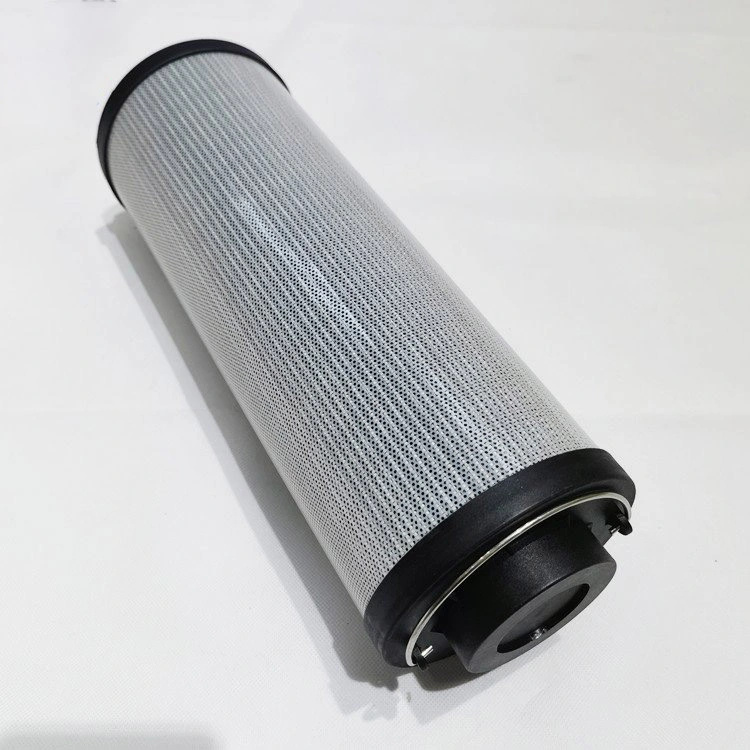

Zul. Oil Pump Hydraulic Oil Filter Element 0240R005BN4HC for -30°C to 100°C Temperature Images |
