Condition : New
Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Advertising Company
Weight (KG) : 1
Showroom Location : None
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Marketing Type : New Product 2020
Warranty of core components : 3 month
Core Components : Glass fiber
Place of Origin : Hebei, China
Brand Name : BangMao
Warranty : 1 Year
Weight [kg] : 1
Application : Hydraulics
Flow direction : Outside to Inside
Outer diameter [mm] : 96.11
Height [mm] : 332.5
Filter medium : Synthetic
Efficiency : 12 μm at Beta 1000
Inner diameter [mm] : 56.39
Packaging Details : we pack our goods in PP bags and brown cartons. If you have a legally registered patent, we can pack the goods into your brand box after receiving your authorization.
Port : Tianjin Qingdao Shanghai ect
Supply Ability : 10000 Piece/Pieces per Month
Price : $50.00/pieces 1-9 pieces
MOQ : 20 pieces
Performance Data | Dimensional Specifications | Physical Specifications | |
MICRON RATING:10.00 ABSOLUTE | (A) OUTER DIAMETER, TOP:3.78 IN (96.01 MM) | HANDLE:NONE | |
BETA RATING:B10=200 | (B) OUTER DIAMETER, BOTTOM:3.78 IN (96.01 MM) | SEAL MATERIAL:VITON | |
COLLAPSE PRESSURE RATING:150 PSID | (C) INNER DIAMETER, TOP:2.23 IN (56.64 MM) | TYPE OF ADHESIVE:EPOXY | |
MAXIMUM TEMPERATURE:250 F | (D) INNER DIAMETER, BOTTOM:2.23 IN (56.64 MM) | TYPE OF ENDCAP:PLATED STEEL | |
DIRECTION OF FLOW:OUTSIDE->IN RECOMMENDED CHANGEOUT DIFFERENTIAL PRESSURE:50 PSID | (E) LENGTH:13.11 IN (56.64 MM) (F) THREAD:N/A | CENTER TUBE:CORELESS | |
Get the quote by contacting us | TYPE OF MEDIA:MICROGLASS | ||
FILTER AREA:N/A | |||
PLATING:N/A | |||
OUTER JACKET:NONE - NONE | |||
CONFIGURATION:DOUBLE OPEN END |
![]() |

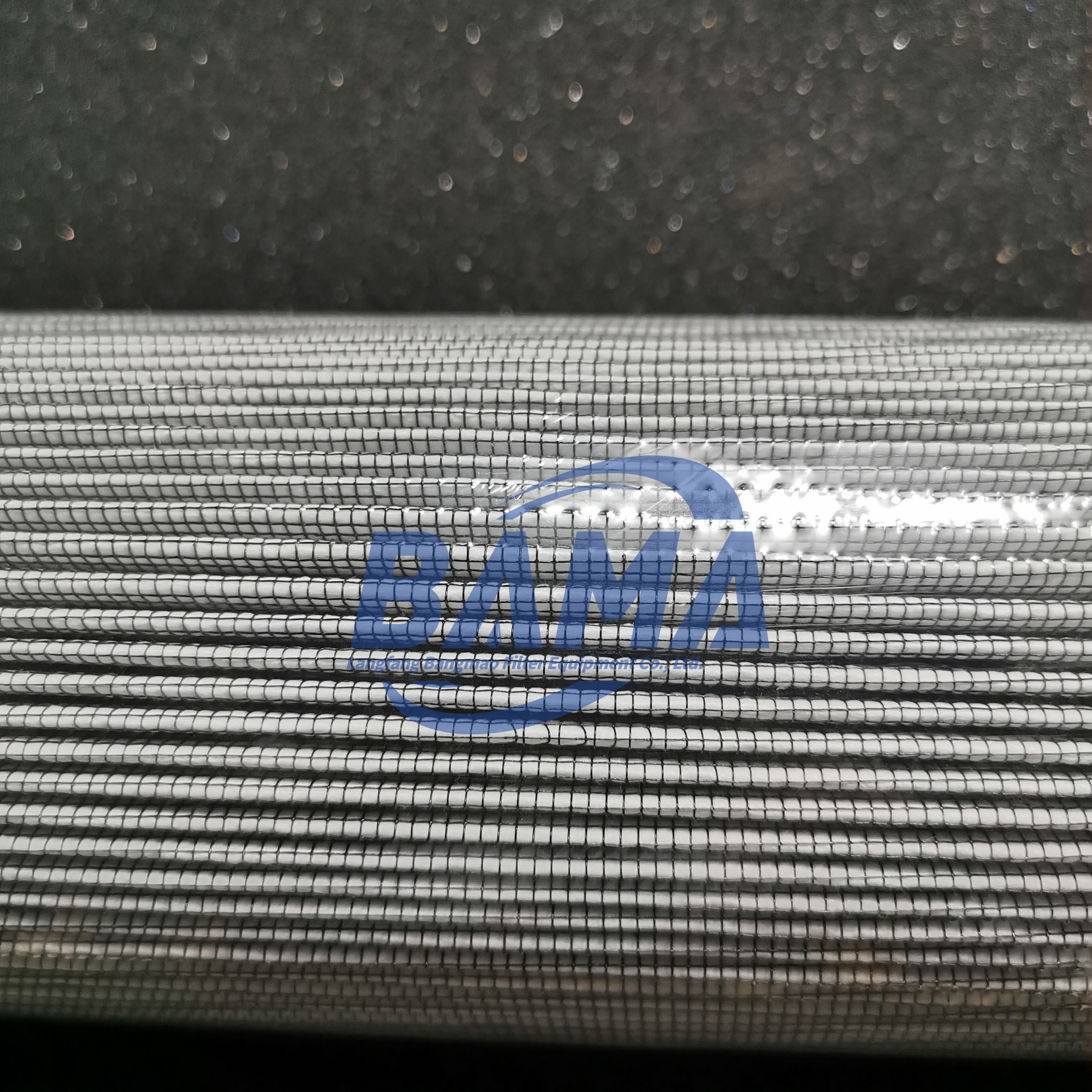

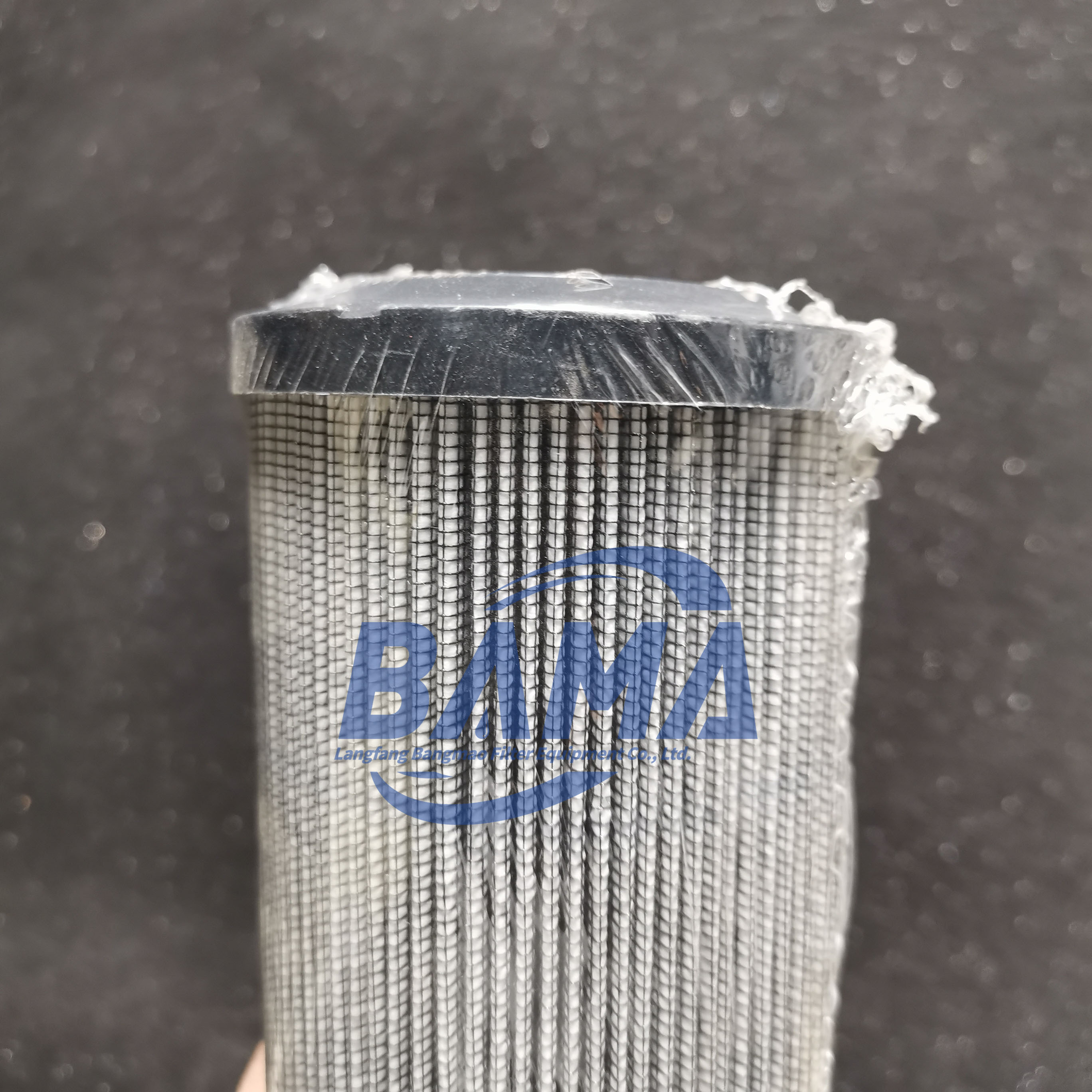

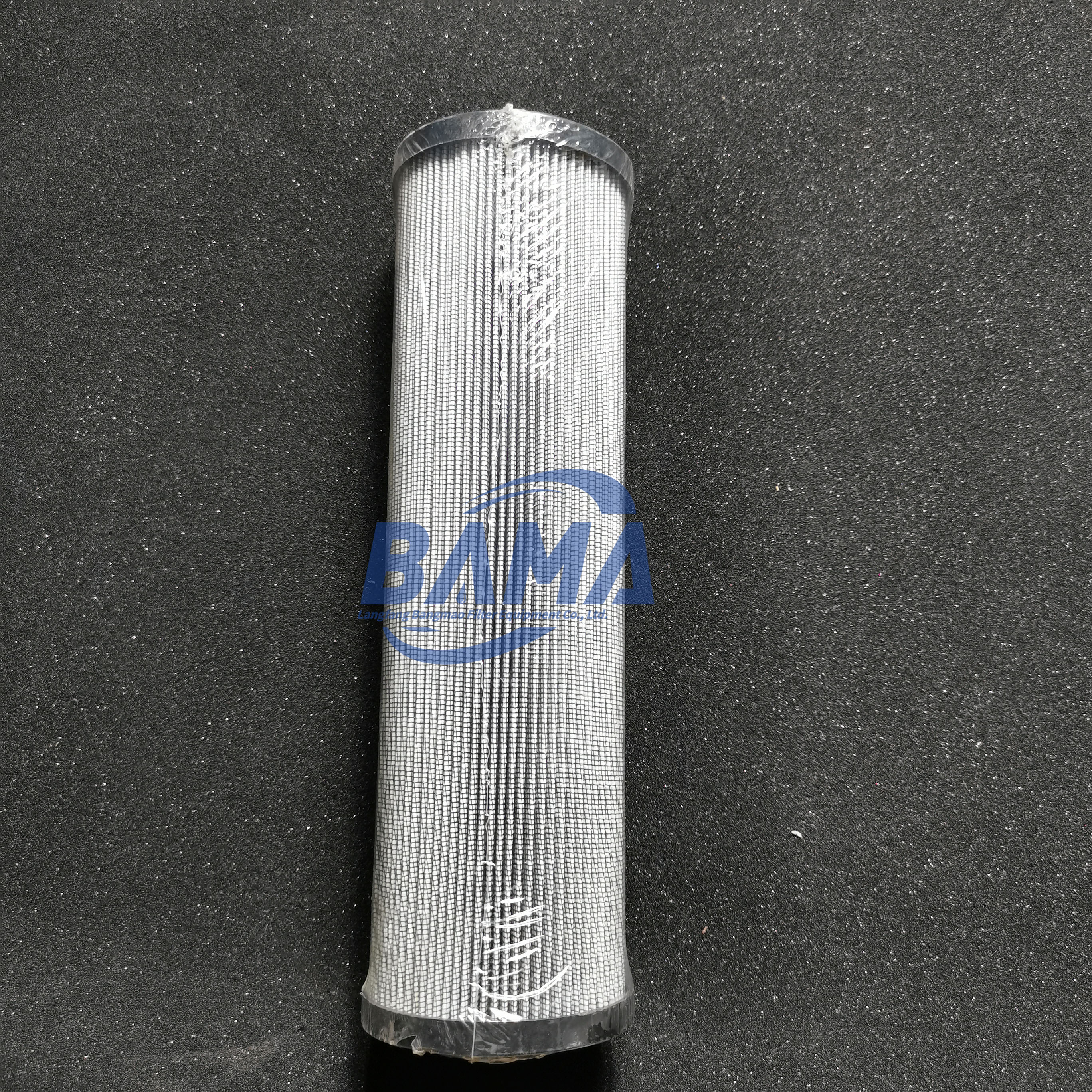

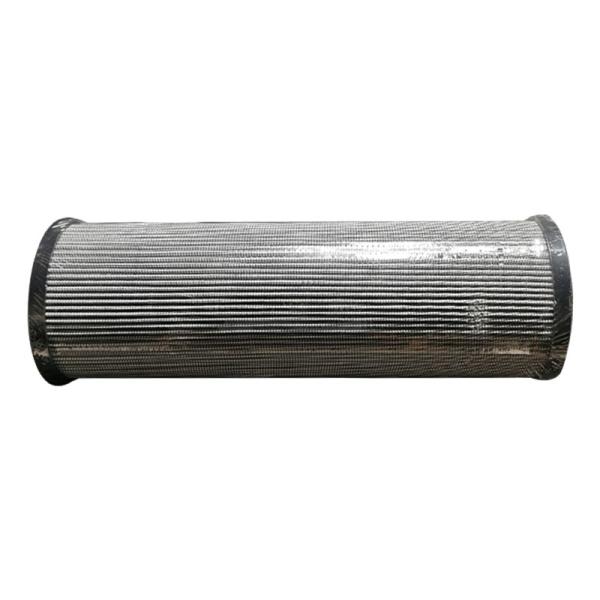

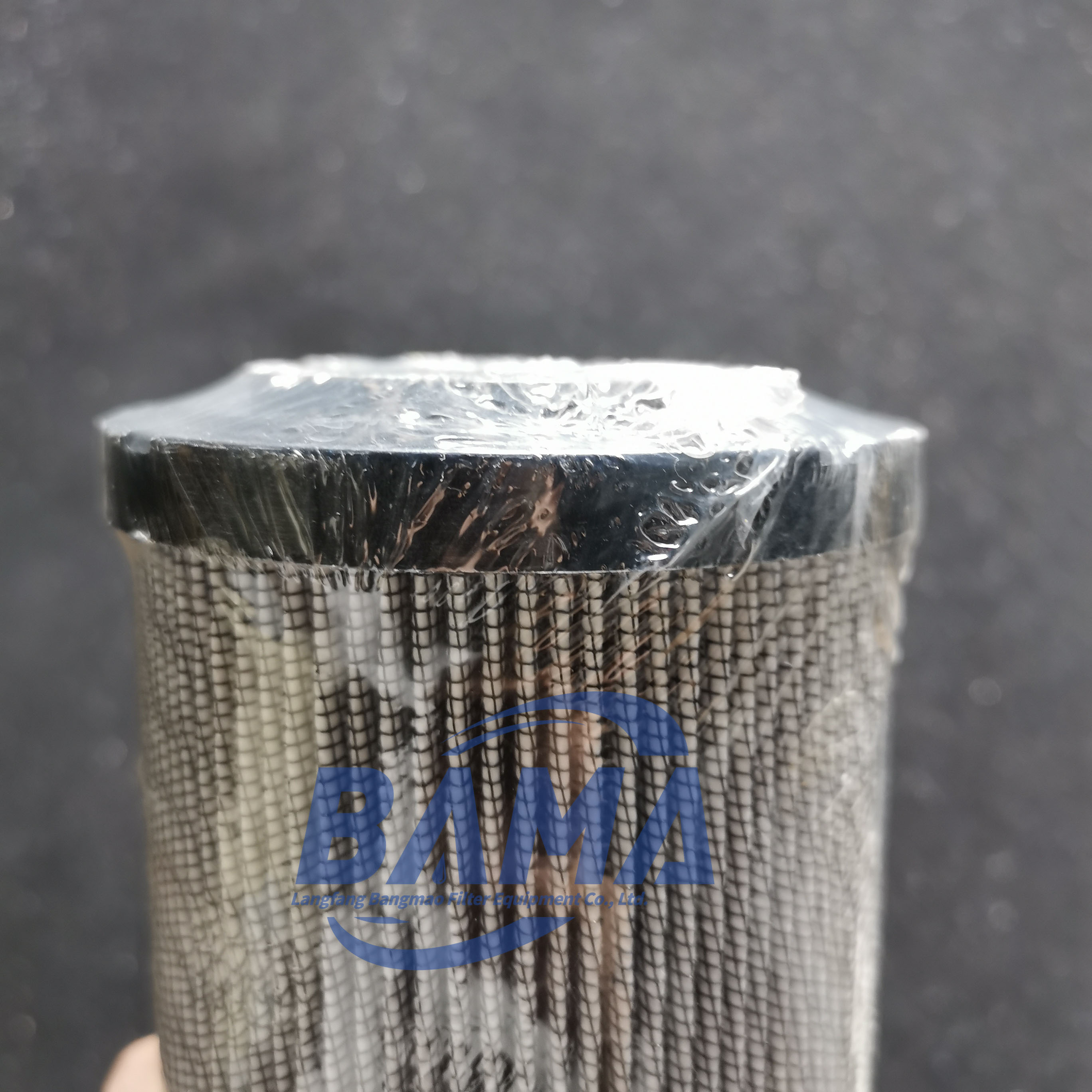

Industrial Hydraulic Oil Filter Cartridge 936718Q with Efficiency 12 μm at Beta 1000 Images |
